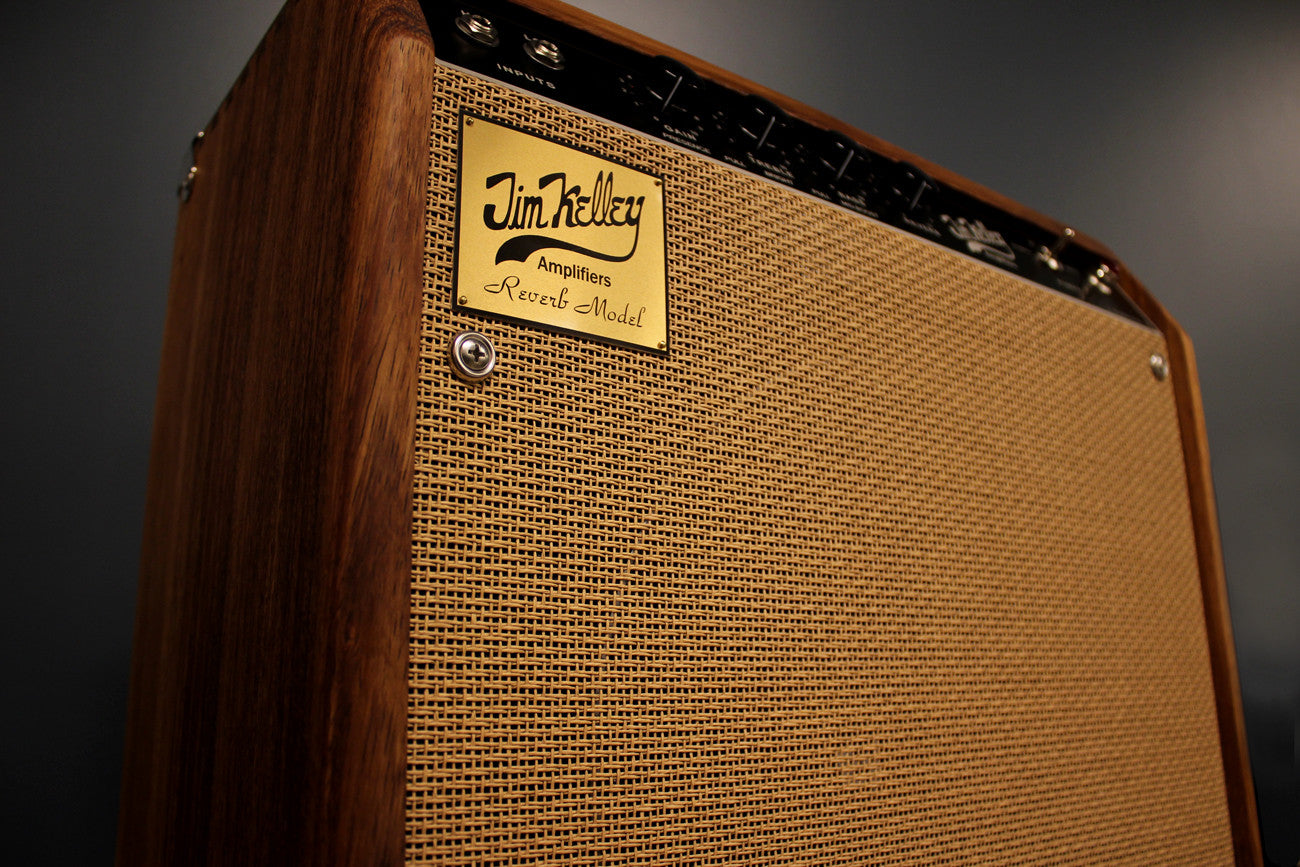

Jim Kelley 1x12 Wood Combo - Limited Perota and Jute
- DESCRIPTION
This Jim Kelley Single Channel 1x12 Combo features a Perota Wooden cabinet with jute grill and is part of a limited 25 piece worldwide run!
The Jim Kelley Single-Channel amplifier is designed to retain your guitars natural tonal characteristics in a 60 watt all-tube package while still delivering a broad range of punchy, high powered clean and smooth dynamic overdrive. Featuring a versatile pre-amp / power-amp, active shelving tone controls, reverb, and the ability to switch to half power, thie Jim Kelley Single-Channel is sure to deliver any tone you need and more.
Front Panel:
Power Select Switch:
30 Watts for operation at half power
OFF: Power is switched off
60 Watts for operation at full power
Rear Panel
The Jim Kelley Single-Channel amplifier is designed to retain your guitars natural tonal characteristics in a 60 watt all-tube package while still delivering a broad range of punchy, high powered clean and smooth dynamic overdrive. Featuring a versatile pre-amp / power-amp, active shelving tone controls, reverb, and the ability to switch to half power, thie Jim Kelley Single-Channel is sure to deliver any tone you need and more.
Front Panel:
Power Select Switch:
30 Watts for operation at half power
OFF: Power is switched off
60 Watts for operation at full power
- Gain: Acts as an overdrive and a volume control. Adds harmonic sustain, richness and depth when at higher gain settings. (Pulling activates Presence)
- Treble: Adjusts the boost and cut of treble frequencies. (Pulling activates Bright)
- Bass: Adjusts the boost and cut of bass frequencies. (Pulling activates Mid-Boost)
- Reverb: Adjusts the amount of reverb introduced into the signal.
- Presence (Pull Gain): Located on the Gain control, this adds high frequencies by alternating the power section's negative feedback.
- Bright (Pull Treble): Located on the Treble control, this provides an additional boost of treble for a glassy edge.
- Mid-Boost (Pull Bass): Located on the Bass control, this adds thickness and sustain for "fattening up" lead tones.
- Inputs: HI input is for guitars that use passive or high impedance pickups and the LO input is for guitars with active or low impedance pickups.
Rear Panel
- Boost: Footswitchable Post-EQ boost in gain to the output section to increase saturation while keeping the pre-amp clean and punchy.
- Speaker Out: 4 and 8 ohm outputs.
- Standby Switch: Standard function standby switch.
- Tubes: Power Tubes: 6V6 (x4) Preamp Tubes: 12AX7 (x3), 12AT7 (x1)
- Speaker: EVM-12L 12" Speaker
