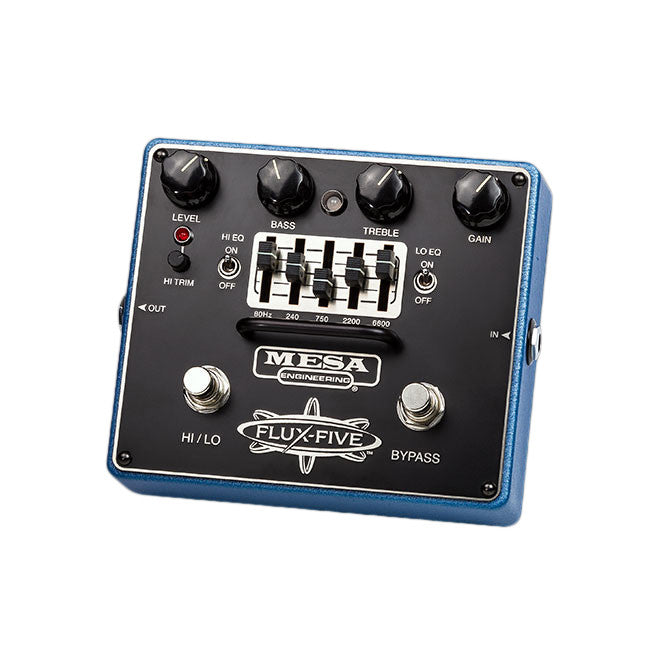

Mesa Boogie Flux 5 Overdrive / EQ Pedal
- DESCRIPTION
The Mesa FLUX FIVE is a highly versatile vintage overdrive that features fat tone and Mesa's 5 Band EQ.
The Mesa/Boogie Flux Five Overdrive EQ Pedal is essentially a Flux Drive with Mesa's five band EQ. Although, they have added a few other features that really helped to meld the two together like foot switchable Hi and Lo pass filters, and output level controls. Which allows you to apply your EQ curve separately to the Hi and Lo Performance Modes.
Specifications:
Dimensions (W/D/H): 5.78" x 4.76" x 2.30"
True Bypass Switching
Battery Type: 9VDC (one)
Power Consumption (Current Draw): 9VDC/15mA
AC Adapter (Optional): Power Jack 2.1mm x 5.5mm, 9VDC with Negative Center (Regulated Recommended)
Input Impedance: 1M Ohm (500k Ohm minimum)
Output Impedance: 10k Ohm
Link to Manual: http://www.mesaboogie.com/manuals/flux-five_140401.pdf
The Mesa/Boogie Flux Five Overdrive EQ Pedal is essentially a Flux Drive with Mesa's five band EQ. Although, they have added a few other features that really helped to meld the two together like foot switchable Hi and Lo pass filters, and output level controls. Which allows you to apply your EQ curve separately to the Hi and Lo Performance Modes.
- Custom Designed AND Hand-Built in Petaluma, California, USA
- Mesa/Boogie 5 band EQ
- Foot switchable Hi/Lo Performance Modes
- Hi/Lo Output Level Switches (Applies EQ to Hi/Lo Performance switch)
- Hi Frequency Trim
- True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss
- Gain Control allows you to dial in the perfect amount of vocal-overdrive, dynamic to sustaining
- Master Level Control provides a variable range of signal boost up to +20db
- Bass & Treble Controls provide +/- 12db of EQ boost or cut for exceptional tone shaping
- On/Off Status LED
- 9V Battery Powered or optional AC Powered via External Power Jack Input
- Input & Output Jacks (Nominal Input -20 db)
Specifications:
Dimensions (W/D/H): 5.78" x 4.76" x 2.30"
True Bypass Switching
Battery Type: 9VDC (one)
Power Consumption (Current Draw): 9VDC/15mA
AC Adapter (Optional): Power Jack 2.1mm x 5.5mm, 9VDC with Negative Center (Regulated Recommended)
Input Impedance: 1M Ohm (500k Ohm minimum)
Output Impedance: 10k Ohm
Link to Manual: http://www.mesaboogie.com/manuals/flux-five_140401.pdf
